What is Data Warehouse Architecture?
Data warehouse architecture is the blueprint or the structure that outlines data storage, management, access, and organization in a data warehouse (DWH) system.
The process of converting raw data into useful insights is long and full of different components. The architecture combines these components with the processes and interactions.
The active data warehousing (ADW) market size is expected to grow at a CAGR of 13.7% and reach $19.43 billion in 2029.
DWH architecture creates a single source of truth for your entire organization, making it easier for transformation and analysis. These are designed to be stakeholder-oriented. Thus, even though different stakeholders are using common data, they have different data analysis and modeling needs.
Book a data warehouse consulting call with us and understand how your data can unlock unprecedented growth.
Understanding the architecture begins by learning about its four crucial layers.
Data Warehouse Layers
In data warehousing, the architecture follows a layered approach to make the data more usable for analytical purposes.

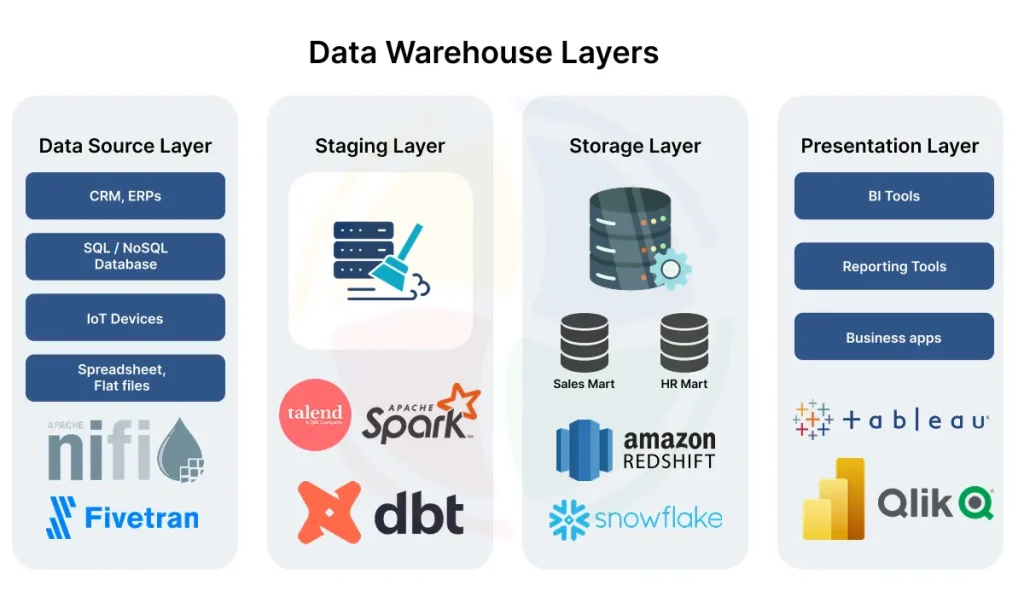

Let’s understand the four DWH layers.
1. Source Layer
The source layer is the foundational layer that stores data in multiple databases and operational systems. You cannot usually access your data directly from here since it is a storage unit for further processing. Some common sources are NoSQL DBs, APIs, relational DBs, etc.
2. Staging Layer
The staging layer temporarily holds your collected data to clean, validate, and transform it. Different ETL tools come together to carry out data preparation tasks.
3. Modeling Layer
Structured data is stored here in an organized manner for analytical querying and reporting. Star schemas and Snowflake schemas are common data models for this layer.
4. Presentation Layer
Also known as the consumption layer, it offers a user-friendly interface for easy data access and analysis. You can use visualization tools, such as reports and dashboards, to interact with this information.
Components of Data Warehouse Architecture
A robust data warehouse is made of an intricate interplay of distinct components. Each component is important for transforming your accumulated raw data into refined intelligence.
They are interconnected aspects of a powerful analytical engine and must be understood to appreciate how a DWH seamlessly delivers accurate and actionable insights on time.

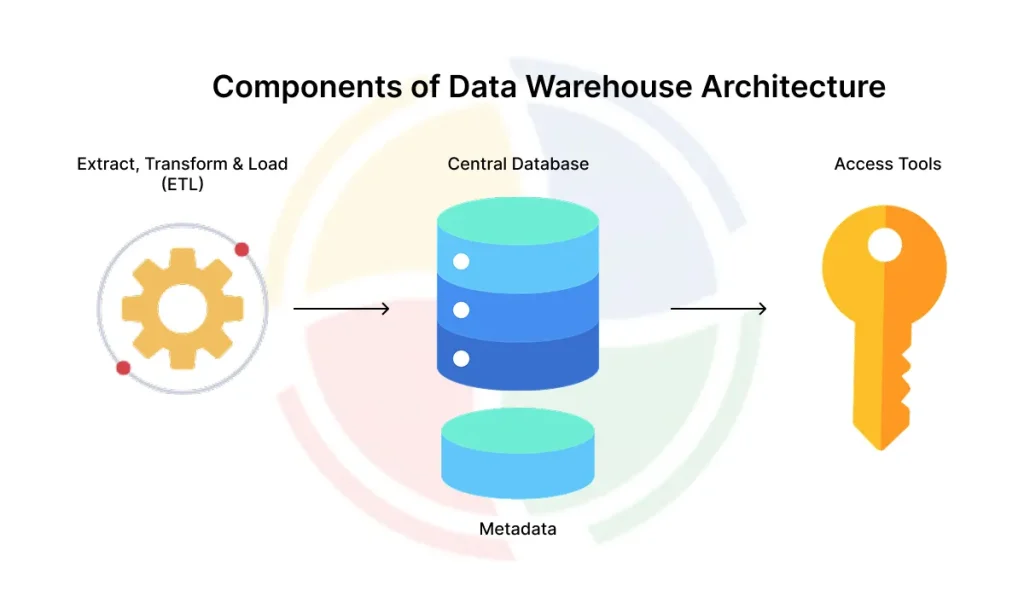

Here are the core components of data warehouse architecture:
1. Data Warehouse Database
The database (DB) is at the center of the warehouse and stores the data to make it reporting-ready. There are four main types of databases, including typical relational DBs, cloud-based DBs, analytics DBs, and data warehouse applications. Your organizational requirements will determine which database is right for you.
2. Data Integration
Different integration approaches transform the information for swift analytical consumption. The two common approaches are ETL (extract, transform, load) and ELT (extract, load, transform).
However, other approaches include data transformation and bulk-load processing. Choosing the right tool is important to determine extraction approaches, fill incorrect data, time consumption, etc.
3. Metadata

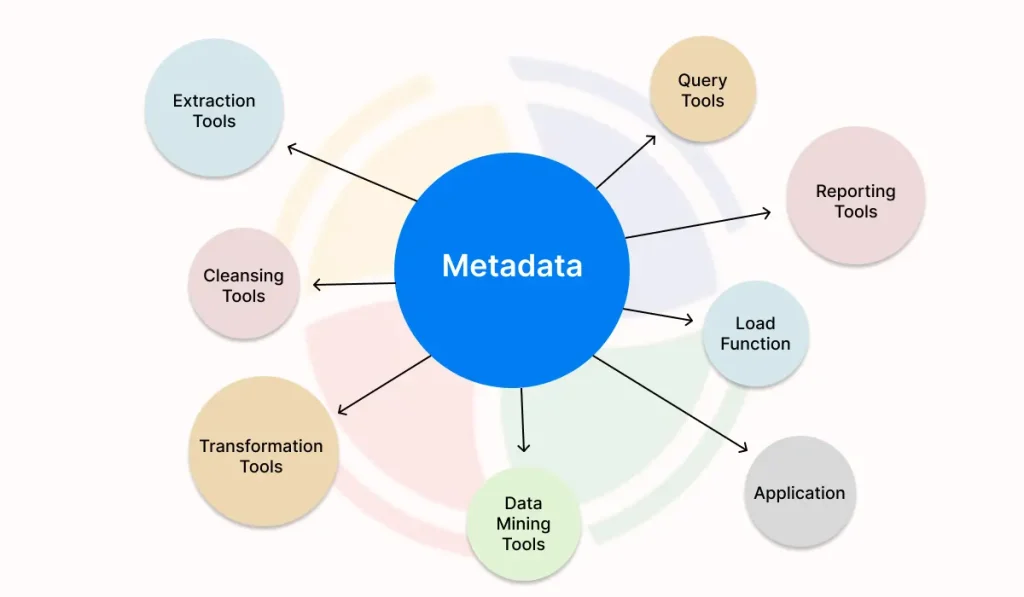

Metadata is data about your data, which is also stored in the repository. It includes all the information about the structure, use, source, content, and other DWH features. Business metadata has information about data related to storage point, structure, and accessibility.
4. Data Warehouse Access Tools
As DWHs are made of databases, they require access tools to tap into the stored data. While not all business units need these tools, they are still fundamental to the architecture. Some key access tools are data mining, query and reporting, OLAP, and app development.
Is your data slowing you down? Get a scalable, high-performance solution with our data warehouse services and empower your analytics team.
Types of Data Warehouse Architecture
More than 97% of business leaders highlight their intent towards using data for better decision-making processes and operations optimization.

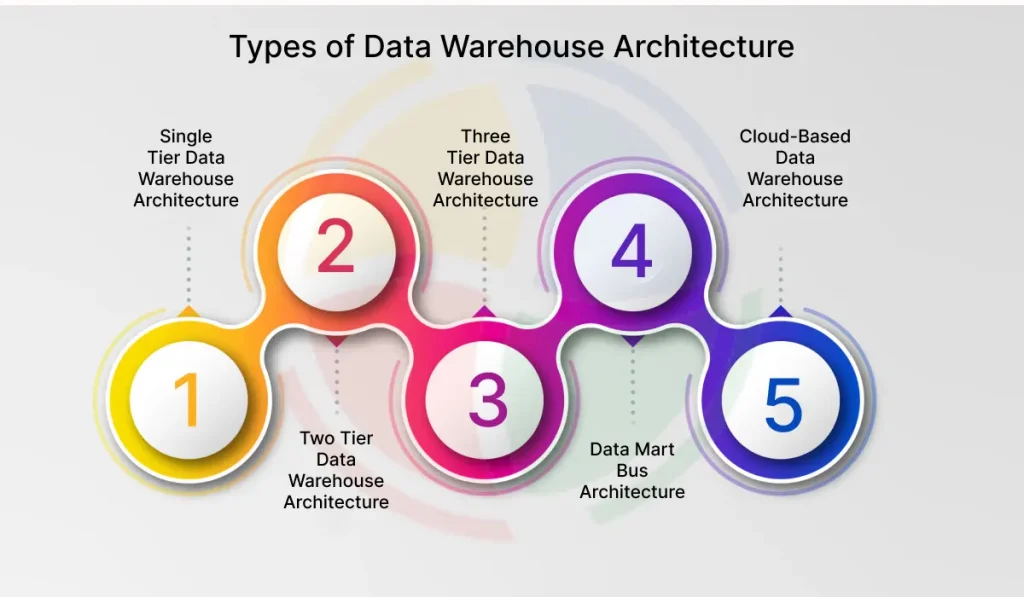

Many businesses wish to adopt the right techniques and tools for using data correctly. Choosing the right data warehousing architecture can change your organization’s scalability, integration, and performance.
1. Single-Tier Architecture
The single-tier architecture is the simplest on the list and stores very little data. It is built atop a unified, centralized DB that accumulates data from various sources.
It reduces redundancies, which is also why a business with multiple data streams does not opt for it. All its components are present on a single system.
Single-Tier Components
- Source Layer: Raw data originates here from ERP systems, external data feeds, transaction processing systems, etc.
- DWH Layer: It is a specialized middleware that provides an integrated view of the data collected from the source layer.
- Analysis Area: You interact with your data here for analysis, reporting, and querying. It encompasses query interfaces, reporting software, and BI tools.
Single-Tier Benefits
- Easy to understand and simple
- Lower software and hardware costs
- Reduced redundancy
Single-Tier Drawbacks
- Limited performance and scalability
- Not very flexible
- Not apt for complex organizational needs
- Limited historical data
2. Two-Tier Architecture
Two-tier architecture is a step ahead of the simple, single-tier architecture. It has a data staging area where data cleansing happens to get it in the appropriate format.
The staging area separates the data sources and the warehouse, which was unavailable in the former type. It uses a database server and system for faster access to information for analysis.
It is difficult to manage gigantic data amounts with this design and is thus mostly preferred by small and medium-sized businesses (SMBs). It works well when the data volume is moderate, and the analytics and reporting needs are simple. Also, it enables direct integration between BI and DWH tools.
Two-Tier Components
- Source Systems: Works like a single-tier architecture.
- Staging Area: New intermediary layer where all the extracted data lands first. The cleansing, transformation, and integration happen here to make information load-worthy for the next stage.
- Data Warehouse: This is the core and stores data after its integration, transformation, and cleansing. Usually, a carefully designed Relational Database Management System (RDBMS) is used for analytical queries. The data here is often structured through the Snowflake or the Star schema.
- Analysis Layer: The analysis layer encompasses applications and tools that enable interaction between you and your data. You can explore the data to generate insights through different BI platforms, OLAP tools, query interfaces, data mining software, etc.
Two-Tier Benefits
- Better data quality due to the staging area
- Separates analytical workload and operational systems for better performance
- Effective resource allocation
- More scalable
Two-Tier Drawbacks
- Higher hardware and software licensing costs. Additional costs for skills ETL/ELT personnel
- More complex
- Possibility of delays between data generation and availability for analysis
3. Three-Tier Architecture of Data Warehouse

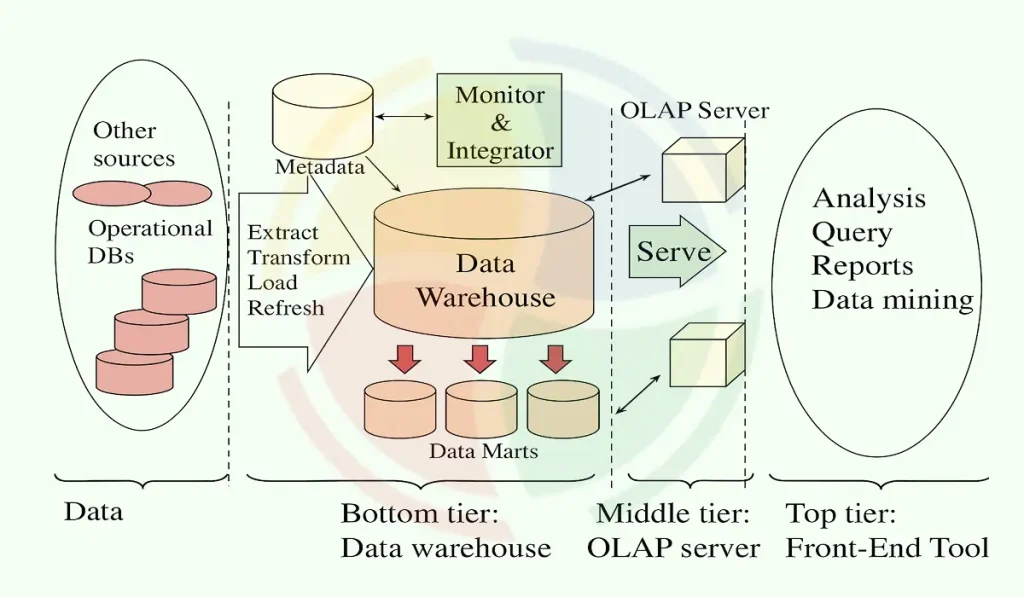

Organizations with large, complex datasets and diverse user needs usually go for a three-tier architecture of data warehouses. It is high-level architecture addresses the connectivity issues often seen in other architectures.
