By 2027, AI-related computing could consume more electricity than some entire countries.
The striking projection underscores the scale of transformation underway in modern computing.
As organizations ramp up AI training, inference, and generative workloads, traditional data centers face power, cooling, and network bottlenecks. Conventional architectures are not designed for the intensity of GPU clusters or 24/7 AI workloads.
Building infrastructure that can sustain this new demand requires a complete rethinking of data center design.
In this blog, we will explore how to build an AI data center, covering design, cost, power, and timelines to create infrastructure that scales with AI workloads.
AI data centers are built for large-scale training, inference, and generative AI, featuring GPU clusters, liquid cooling, and high-speed interconnects.
- Architecture: GPU/TPU compute, NVMe storage, InfiniBand/NVLink networks, and advanced liquid cooling (30–142 kW racks).
- Lifecycle: From workload planning to site selection, modular build, and performance validation.
- Costs & Timeline: $8–12 M per MW IT load; GPUs = 50–70% of CAPEX; 12–24 months build (under 9 months modular).
- Sustainability: Power use rivals a small town—focus on energy efficiency, heat reuse, and renewables.
- Best Practices: Design for modularity, hybrid cooling, automation, and maintain PUE
What Makes an AI Data Center Different?
AI data centers are optimized for the computational intensity of large model training and inference.
• GPU/TPU-Driven Compute Intensity
AI workloads use accelerators (NVIDIA H100/Blackwell, AMD MI300X, Google TPU v5p) optimized for matrix/tensor math. These enable massive-scale parallelism essential for billion-parameter models.
Unlike CPUs, they deliver massive parallelism but also generate far more heat and power per square foot.
• Massive Parallelism and Low-Latency Networking
Training is often distributed across hundreds or thousands of GPUs. To keep synchronization efficient, AI data centers depend on high-bandwidth, low-latency interconnects, such as InfiniBand, NVLink, or RoCE (RDMA over Converged Ethernet).
These networking fabrics ensure seamless communication between GPU nodes, minimizing bottlenecks during backpropagation or gradient sharing.
• High-Density Racks (Up to 100–142 kW)
Traditional enterprise racks typically operate around 10-20 kW, but AI racks can exceed 100 kW per rack. The dramatic increase in density transforms how power distribution units (PDUs), cabling, and cooling layouts are designed.
Every square foot of floor space must now deliver higher electrical capacity and thermal management, driving innovations in modular rack design and sub-floor airflow optimization.
• Liquid Cooling Adoption
As air cooling reaches its physical limits, liquid cooling has become the standard for AI data centers. Technologies such as direct-to-chip cooling, cold-plate systems, and immersion cooling allow facilities to dissipate massive thermal loads while maintaining optimal GPU performance.
These methods improve energy efficiency, reduce noise, and lower the space and airflow demands associated with traditional HVAC-based systems.

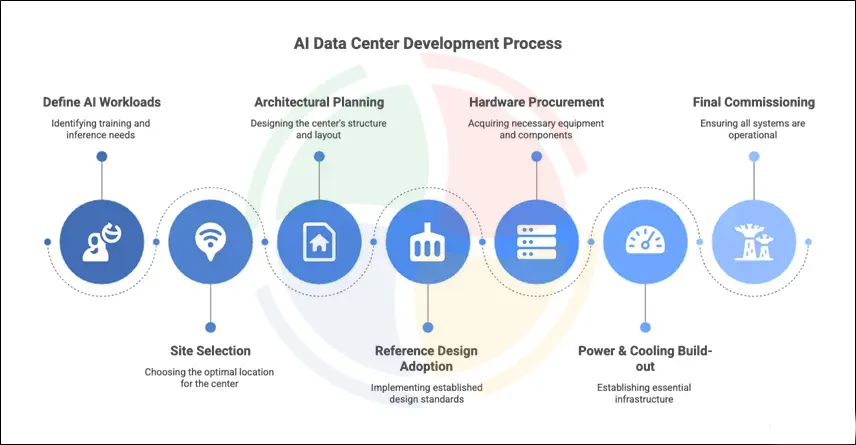

How to Build an AI Data Center: Step-by-Step
Building an AI-ready data center is a highly coordinated, multi-phase process that blends architectural design, MEP engineering, IT hardware strategy, and operational validation.
1. Define Workload Scope
The foundation of any AI facility begins with a clear understanding of what workloads the center will support.
AI training environments for large language models (LLMs) or generative applications demand thousands of GPUs operating concurrently, often consuming megawatts of power per cluster. In contrast, inference-focused setups prioritize low-latency throughput over raw compute intensity.
Define:
- Training vs. Inference Mix: Training needs sustained high-power compute; inference requires distributed, scalable endpoints.
- Model Complexity: Parameter count, batch size, and concurrency directly affect power budgets and network fabric design.
- Scalability Horizon: Plan for growth by designing the infrastructure to support both current and long-term power demands, ensuring scalability over time.
2. Site Selection
Location defines the feasibility and sustainability of your AI data center.
Evaluate sites across five critical vectors:
- Power Availability: Secure high-capacity grid access or private substations (tens of MWs).
- Network Proximity: Access to fiber backbones and cloud interconnect points for high-bandwidth, low-latency data exchange.
- Climate: Cooler regions reduce mechanical cooling costs—direct free-air or liquid-assisted cooling becomes more efficient.
- Renewable Integration: Sites near solar, hydro, or wind sources support sustainability and cost stability.
- Ecosystem Synergy: Proximity to R&D centers, colocation facilities, or hyperscaler regions enables hybrid and federated AI deployments.
3. Architectural Planning
This phase defines the physical and logical blueprint of the AI data center. Collaboration between architects, MEP engineers, and IT planners is crucial.
Key elements:
- Electrical Design: Redundancy configurations (2N or N+1) to ensure continuous power delivery under load.
- Cooling Architecture: Integration of liquid-cooled racks, rear-door heat exchangers, or immersion tanks, depending on density.
- Network Fabric: Spine-leaf topologies using InfiniBand or 400 GbE Ethernet fabrics to minimize latency in distributed training.
- Containment and Safety: Hot/cold aisle containment, fire suppression systems, and airflow zoning for thermal efficiency.
4. Select Reference Designs
Adopting validated reference architectures accelerates build time and reduces design risk.
Examples include:
- NVIDIA DGX SuperPOD for multi-node GPU scaling.
- Google TPU Pod architectures for large-scale AI training clusters.
- Schneider Electric and Vertiv modular pods, which deliver prefabricated power, cooling, and rack infrastructure for rapid deployment.
Using these as a baseline ensures the data center meets best practices for high-density, AI-optimized environments.
5. Procure Compute & Networking Gear
Procurement is often the most time-sensitive and risk-prone stage of building AI data centers. Lead times for critical components, such as GPUs (e.g., NVIDIA H100s), transformers, and power distribution units (PDUs), can range from 6 to 12 months because of intense global demand and supply chain bottlenecks.
Key Actions:
- Establish vendor relationships early: Partner with trusted suppliers and hardware manufacturers well in advance to secure GPUs and other high-demand component allocations.
- Plan for parallel procurement: Source switch fabrics, storage enclosures, and cooling components simultaneously to avoid sequential delays.
- Monitor global supply trends: Track market conditions and anticipate potential shortages or price fluctuations to adjust procurement timelines proactively.
- Build buffer inventory: Maintain minimal critical spares to handle last-minute hardware failures or shipment delays.
6. Build Power & Cooling Infrastructure
With procurement underway, the focus shifts from planning to execution, turning design blueprints into a resilient physical foundation. This stage ensures the facility can sustain the extreme power and thermal demands of AI workloads.
Construction begins with core infrastructure build-out:
- Substation & Power Setup: Install high-voltage substations, redundant UPS systems, and PDUs capable of supporting 100 kW+ rack densities to ensure stable power delivery.
- Liquid Cooling Deployment: Implement direct-to-chip or immersion-cooling systems to manage the sustained thermal output of GPU-intensive workloads efficiently.
- Intelligent Infrastructure Management: Integrate BMS (Building Management System) and DCIM (Data Center Infrastructure Management) platforms for real-time telemetry, energy monitoring, and predictive maintenance across power and cooling assets.
7. Commission & Validate
Before going live, the AI data center undergoes a commissioning process to verify every system’s performance under full load.
The process involves:
- Stress testing: Simulate maximum GPU utilization across clusters.
- PUE Optimization: Measure and refine Power Usage Effectiveness to target < 1.3 where possible.
- Redundancy Validation: Ensure failover, UPS switching, and cooling redundancy work seamlessly.
Experts at Aegis Softtech can support you in this journey through trusted GenAI development services.

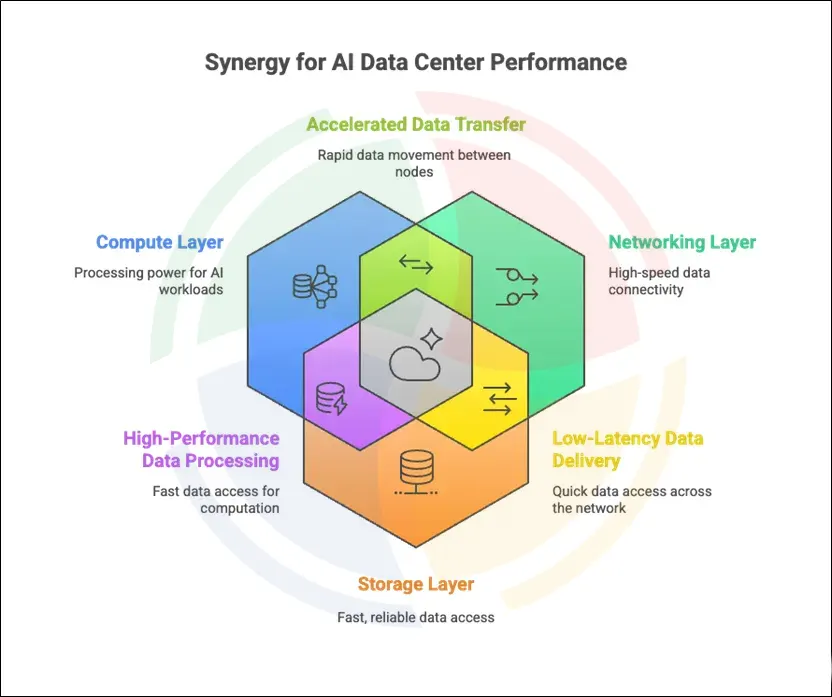

Core Components of an AI Data Center
The backbone of an AI infrastructure lies in its layered architecture, where each component is optimized for data throughput, performance, and efficiency.
1. Compute Layer: GPUs, TPUs, and AI Accelerators
The compute layer drives AI performance. High-end GPUs (like NVIDIA H100/Blackwell, AMD MI300X, and Google TPU v5p) are optimized for model training and inference. These servers are typically organized into GPU server clusters, interconnected through high-speed fabrics for distributed training.
Each AI rack may house up to 8–16 GPUs consuming over 30 kW per rack, demanding precise power and cooling coordination.
2. Networking Layer: High-Bandwidth Interconnects
AI workloads require massive east-west data flow between nodes. Technologies like InfiniBand, NVLink, and RoCE (RDMA over Converged Ethernet) enable ultra-low latency and high throughput.
A spine-leaf architecture ensures every GPU can communicate efficiently during distributed model training.
3. Storage Infrastructure: High-Speed, Parallel Access
AI training pipelines move terabytes of data per hour. To sustain this, AI data centers adopt NVMe-based storage and parallel file systems such as GPFS, Lustre, or BeeGFS.
Checkpointing, dataset loading, and intermediate result caching are optimized through SSD tiers and data locality awareness.
4. Cooling Systems: Transition to Liquid Cooling
With rack densities soaring beyond 100 kW, traditional air cooling falls short. Modern AI facilities use:
- Direct-to-chip liquid cooling, where coolant absorbs heat from GPU plates.
- Immersion cooling, submerging components in a thermally conductive fluid for uniform heat dissipation.
These techniques improve efficiency and extend hardware lifespan while maintaining target PUE (Power Usage Effectiveness) ratios below 1.3.
5. Power & Energy Systems
AI data centers are engineered for redundancy and resilience:
- Dual power paths (2N or N+1 configurations).
- Dedicated substations or on-site renewable energy integration.
- Advanced UPS systems and high-voltage PDUs (Power Distribution Units).
How Much Does It Cost to Build an AI Data Center?
The total cost of building an AI data center depends on capacity, density, and design complexity.
Here’s a potential breakdown of the charges included:
1. Construction & Fit-Out
- Construction and fit-out costs typically range between $8 million and $12 million per megawatt (MW) of commissioned IT load
- Includes expenses related to site preparation, mechanical, electrical, and plumbing (MEP) systems, cooling infrastructure, and power distribution
- Further increase in costs when integrating high-density rack designs and liquid cooling systems to support GPU workloads
2. IT Equipment (GPUs, Servers, Storage)
- IT hardware represents the largest share of total CAPEX, often 50–70% of the overall project budget
- A single GPU rack with eight NVIDIA H100 units can cost upwards of $400,000, depending on configuration and interconnects
- At scale, large AI clusters can require hundreds of such racks, driving total infrastructure investments into the hundreds of millions of dollars
3. Operational Costs
- Continuous power consumption under 24/7 GPU workloads
- Maintenance of cooling systems and fluid circulation loops
- Staffing, monitoring, and physical security operations
Energy usage often accounts for the largest recurring cost, contributing to a significant share of monthly operational expenditure (OPEX), particularly in regions with higher electricity tariffs.
How Long Does It Take to Build an AI Data Center?
Building timelines vary by scale and delivery model:
| Phase | Duration |
| Planning & Permitting | 3–6 months |
| Construction & Fit-out | 6–12 months |
| Equipment Procurement & Testing | 3–6 months |
Traditional builds take 12–24 months, but modular prefabricated data centers can reduce deployment to under 9 months, ideal for enterprises scaling rapidly into AI workloads.

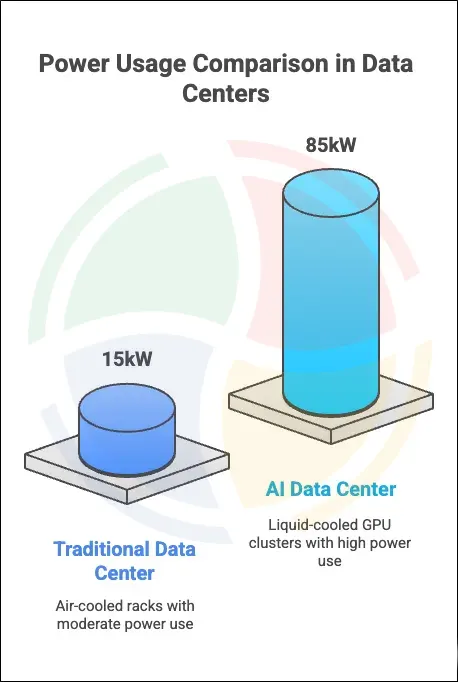

How Much Power Does an AI Data Center Use?
AI data centers operate at far higher power densities than traditional enterprise facilities. The shift from CPU-based workloads to GPU-intensive AI training and inference has dramatically increased the energy footprint of modern data centers.
| Category | Typical Power Density | Key Characteristics |
| Traditional Data Center Rack | 10–20 kW | Designed for CPU-based enterprise or cloud workloads; air cooling is usually sufficient. |
| AI Data Center Rack | 30–142 kW (as per NVIDIA–Schneider Electric reference design) | High-density racks with GPU clusters rely heavily on advanced liquid cooling and optimized power distribution. |
| 10 MW AI Facility | Equivalent to the power usage of a small town (≈10,000–12,000 homes) | Highlights the scale of energy required for large AI clusters. |
How Modern AI Data Centers Manage Power & Efficiency
- Liquid Cooling for Thermal Efficiency: As rack densities exceed 30 kW, traditional air cooling becomes insufficient. Modern facilities use direct-to-chip or immersion cooling to remove heat more effectively, reduce fan power consumption, and enable higher GPU density per rack.
- Heat Reuse and Energy Recovery: Forward-looking operators are turning waste heat into a resource, reusing it for district heating systems, water preheating, or adjacent building utilities. This improves the site’s overall energy reuse efficiency (ERE) and contributes to sustainability goals.
- Renewable Energy Integration: With power costs accounting for the highest operational expense, many AI data centers now integrate renewable energy sources such as on-site solar, wind farms, or Power Purchase Agreements (PPAs). The approach mitigates carbon footprint while enhancing long-term energy resilience.
Design Best Practices for AI Data Centers
Building an AI-ready data center is about engineering for efficiency, scalability, and long-term sustainability. As organizations expand their AI workloads, these design principles form the foundation for resilient and future-proof infrastructure.
- Design for Modularity: Adopt pod-based architectures to scale capacity in controlled, incremental steps. Modular designs allow for faster deployment, predictable cost management, and easier maintenance as demand grows.
- Adopt Hybrid Cooling: Combine liquid and air-assisted cooling systems to balance thermal efficiency with operational flexibility. This hybrid approach helps optimize energy use while maintaining consistent GPU performance.
- Optimize Network Topology: Prioritize low-latency east–west traffic across high-bandwidth fabrics like InfiniBand or NVLink. A well-engineered network fabric ensures seamless data movement during distributed AI training.
- Engineer for PUE < 1.3: Continuously monitor Power Usage Effectiveness (PUE) using dynamic load balancing, advanced airflow containment, and liquid-cooling efficiency metrics.
- Integrate Automation: Deploy AI-driven observability, predictive maintenance, and automated orchestration to improve uptime, reduce human intervention, and optimize power utilization.
Challenges & Trade-offs
While these best practices create a strong technical foundation, real-world AI data center projects often face complex trade-offs between cost, scalability, and power availability.
Key challenges include:
- High CAPEX and Long ROI Cycles: The initial investment for AI data centers—covering GPUs, power systems, and cooling—can reach into the hundreds of millions, often resulting in extended payback timelines.
- Power Grid Constraints: Limited access to stable, high-capacity power grids can delay expansion in densely populated or infrastructure-constrained regions.
- Talent Shortages in HPC and MEP Design: Expertise in high-performance computing (HPC), mechanical, electrical, and plumbing (MEP) disciplines remains scarce, making design and commissioning more complex.
Yet, for enterprises investing in AI at scale, these challenges are far outweighed by the performance gains, innovation potential, and competitive advantage that modern AI infrastructure delivers.
How Aegis Softtech Helps Enterprises Build AI-Ready Foundations
Building an AI data center involves precisely orchestrating technology, scalability, and sustainability. With Aegis Softtech as your technology partner, you gain access to decades of engineering expertise to design, modernize, and optimize GPU-driven environments for consistent performance and energy efficiency.
Our AI developers help you create intelligent power and cooling frameworks, integrate cloud-native AI platforms, and develop resilient, production-grade infrastructure that evolves with your business. Every solution is engineered for agility, security, and sustainability, so your AI investments deliver measurable impact.
Book a free 30-minute consultation with our AI infrastructure experts and take the first step toward building your future-ready AI data center.
FAQs
Q1: How to develop an AI data center?
Start by defining your AI workload requirements, selecting high-density GPU clusters, and designing for power redundancy and liquid cooling. Partnering with an AI infrastructure expert ensures architectural efficiency and scalability.
Q2: What technologies power AI data centers?
AI data centers rely on GPUs/TPUs, InfiniBand or NVLink interconnects, NVMe storage, and advanced liquid cooling—integrated through software-defined orchestration and monitoring systems.
Q3: Can existing data centers be upgraded for AI workloads?
Yes, but upgrades often require reinforcing power distribution, adding liquid cooling, and redesigning airflow management to handle higher rack densities.
Q4: What are the sustainability challenges of AI data centers?
Energy consumption and heat generation are key challenges. Leading operators use renewable energy, waste-heat reuse, and AI-driven efficiency management to minimize environmental impact.
